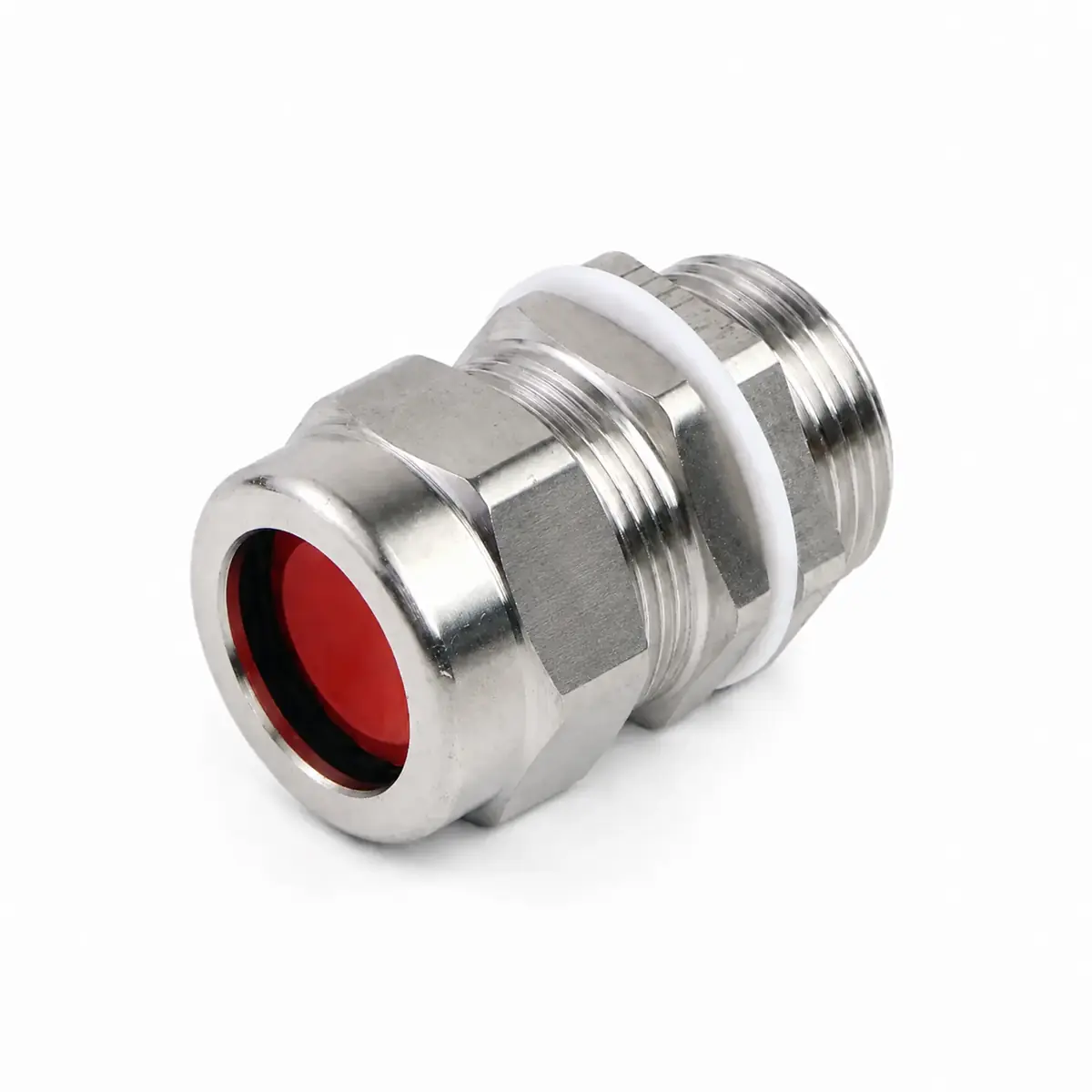

Explosion-Proof Cable Glands for Non-Armored Cables
BDM Series
- Designed to secure and seal non-armored cables at electrical enclosure entries.
- Seal around the cable outer sheath to help maintain enclosure integrity.
- Available in multiple thread types, entry sizes and cable sealing ranges.
- Suitable for threaded junction boxes, control enclosures and other electrical equipment.
- Gland size and entry thread should be selected to match the cable and enclosure requirements.
TECHNICAL DATA
Explosion Protection
Hazardous Areas
• Zone 1 and Zone 2
• Zone 21 and Zone 22
Explosion Protection Marking
IECEx
• Gas: Ex eb IIC Gb
• Dust: Ex tb IIIC Db
ATEX
• Gas: Ex II 2 G Ex e IIC Gb
• Dust: Ex II 2 D Ex tb IIIC Db
Product Parameters
Cable Application
• Cable Type: Non-armored cables
• Function: Cable retention, strain relief and sealing at electrical enclosure entries
Available Materials
• Stainless steel or nickel-plated brass
Ambient Temperature
• −43°C to +100°C
Ingress Protection
• IP66 when correctly installed
Connection Threads
• Metric threads with a 1.5 mm pitch are standard.
• G and NPT threads are available upon request.
Applicable Industries
Suitable for use in:
• Oil & Gas
• Petrochemical
• Chemical Processing
• Fire Protection
• Pharmaceutical
• Textile
• Grain Processing
• Power Generation
FAQ
Q1. What are these cable glands used for?
A1. explosion-proof cable glands secure and seal non-armored cables at electrical enclosure entries in hazardous-area installations.
Q2. Are these cable glands suitable for armored cables?
A2. This series is designed for non-armored cables. Armored cables require cable glands specifically designed for the applicable armor type.
Q3. How do I select the correct gland size?
A3. Select the gland according to the cable outer diameter, required cable sealing range, and enclosure entry thread type and size.
Q4. What materials and thread options are available?
A4. Stainless steel and nickel-plated brass options are available. Thread types and sizes depend on the selected model and order requirements.
Q5. What information is required for a quotation?
A5. Please provide the cable type, cable outer diameter, entry thread type and size, required material, quantity, Ex marking, IP rating and ambient-temperature requirements. We will review the specifications and respond as soon as possible.
