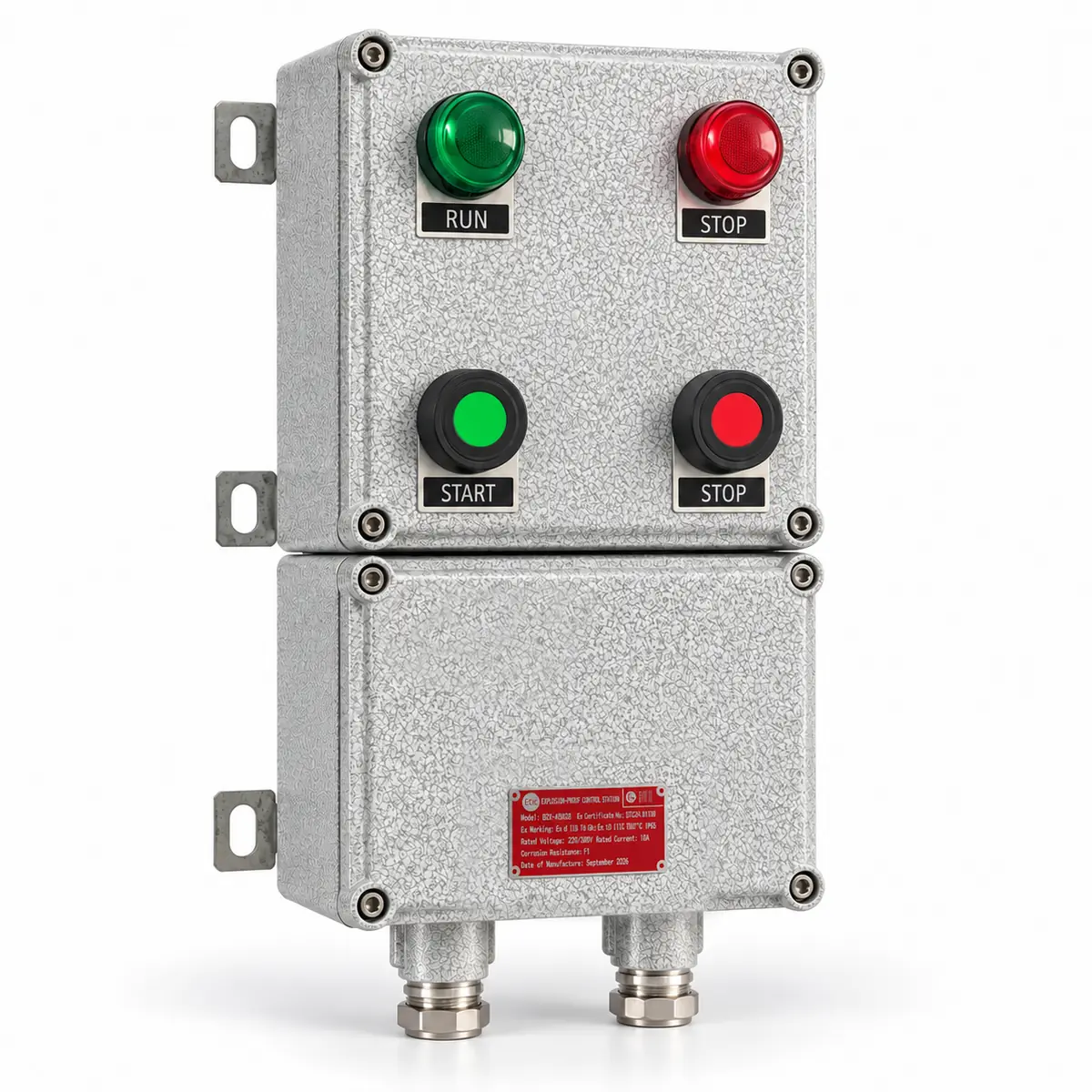

Explosion-Proof Control Stations
BZC8050 Series
- Constructed from cast aluminum alloy with a corrosion-resistant powder-coated finish.
- Can be configured with selector switches, push buttons, indicator lights, potentiometers, ammeters, tachometers, and terminal blocks.
- Designed for local start/stop control, operating mode selection and status indication in hazardous-area installations.
- Available in multiple enclosure sizes and control configurations.
- All exposed fasteners are made of stainless steel and feature a captive design for easy installation and maintenance.
TECHNICAL DATA
Explosion Protection
Hazardous Areas
• Zone 1 and Zone 2
• Zone 21 and Zone 22
Explosion Protection Marking
IECEx
Gas: Ex db eb IIC T6 Gb
Dust: Ex tb IIIC T80℃ Db
ATEX
Gas: Ex II2 G Ex db eb IIC T6 Gb
Dust: Ex II2 D Ex tb IIIC T80℃ Db
Product Parameters
Enclosure Material: Cast aluminum alloy
Exposed Fasteners: Stainless steel
Enclosure Color: Window Gray (RAL 7040)
Ambient Temperature: –40 °C to +40 °C or +55 °C, depending on the configuration.
Electrical Ratings
• Rated Voltage: Max. 415 V AC or 250 V DC
• Rated Current: 6 A, 10 A, or 16 A
Ingress Protection: IP66
Mounting Type: Hanging type,stand type
Applicable Industries
Suitable for use in:
• Oil & Gas
• Petrochemical
• Chemical Processing
• Fire Protection
• Pharmaceutical
• Textile
• Grain Processing
• Power Generation
FAQ
Q1. What information is needed to select a suitable control station?
A1.Please provide the hazardous-area classification, required explosion-protection marking, control functions, electrical ratings, mounting method, and cable-entry requirements.
Q2. What should be considered for outdoor installation?
A2. The IP rating, ambient temperature range, corrosion conditions, cable glands, and mounting arrangement should be confirmed according to the installation environment.
Q3. In which industries are explosion-proof control stations commonly used?
A3.
Explosion-proof control stations are commonly used in hazardous areas where flammable gases, vapors, or combustible dust may be present. Typical applications include:
• Oil and Gas: Offshore platforms, refineries, and pump stations
• Chemical and Pharmaceutical: Chemical processing plants, pharmaceutical production facilities, and solvent-handling areas
• Food and Grain Processing: Flour mills, sugar-processing facilities, and other combustible-dust environments
