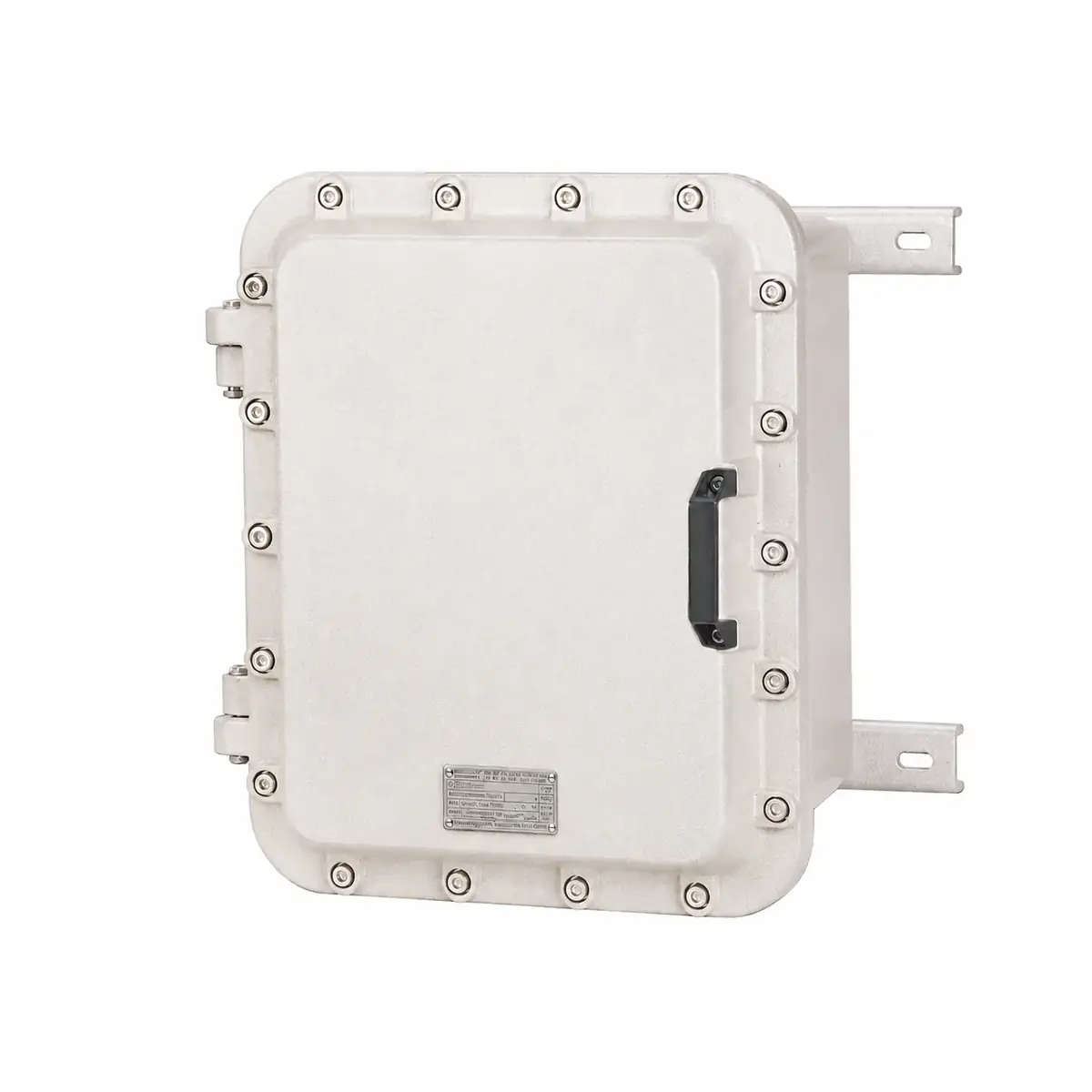

Explosion-Proof Terminal Boxes
BJX Series
- Constructed from cast aluminum alloy with a corrosion-resistant powder-coated finish.
- Designed for circuit connection, cable branching and terminal installation in hazardous areas.
- Removable bolted cover provides easy access for wiring, inspection and maintenance.
- Available in multiple enclosure sizes and terminal configurations.
- Cable entry quantity, position and thread size can be customized to suit installation requirements.
- Suitable for Zone 1, Zone 2, Zone 21 and Zone 22 applications.
- IP66 ingress protection when correctly installed.
TECHNICAL DATA
Explosion Protection
Hazardous Areas
• Zone 1 and Zone 2
• Zone 21 and Zone 22
Explosion Protection Marking
IECEx
• Gas: Ex db IIB+H2 T6 Gb
• Dust: Ex tb IIIC T80°C Db
ATEX
• Gas: II 2 G Ex db IIB+H2 T6
• Dust: II 2 D Ex tb IIIC T80°C Db
Product Parameters
•Materials
• Enclosure: cast aluminum alloy
• Surface Finish: Corrosion-resistant powder coating
• Enclosure Color: RAL 7035
Electrical Ratings
•Maximum Rated Voltage: 800 V AC
Rated Current:
2.5 mm² — 24 A
4 mm² — 32 A
6 mm² — 41 A
10 mm² — 57 A
16 mm² — 76 A
35 mm² — 125 A
70 mm² — 192 A
240 mm² — 400 A
Ingress Protection
• IP66 when correctly installed
Cable Entry Threads
•Metric threads with a 1.5 mm pitch are supplied as standard.
• G and NPT threads are available upon request.
Applicable Industries
Suitable for use in:
• Oil & Gas
• Petrochemical
• Chemical Processing
• Fire Protection
• Pharmaceutical
• Textile
• Grain Processing
• Power Generation
FAQ
Q1. What is an explosion-proof junction box used for?
A1. It houses terminal blocks and provides a secure enclosure for connecting, branching, and terminating electrical conductors in hazardous-area installations. The selected model must match the required hazardous-area classification, Ex marking, IP rating, and environmental conditions.
Q2. What terminal configurations are available?
A2. Terminal type, quantity, and rated current are selected according to conductor cross-section and circuit requirements. Available configurations depend on the enclosure dimensions and cable-entry arrangement.
Q3. Can the junction box be customized?
A3. Yes. The enclosure dimensions, terminal arrangement, number and positions of cable entries, thread type and size, and surface finish can be specified according to project requirements, subject to technical confirmation.
Q4. What information is required for a quotation?
A4. Please provide the required hazardous-area classification, enclosure dimensions, number of circuits, conductor cross-section, rated voltage and current, cable-entry details, quantity, and documentation requirements. We will review your specifications and respond within 24 hours.
